Product Type:Digital Output Relay Module

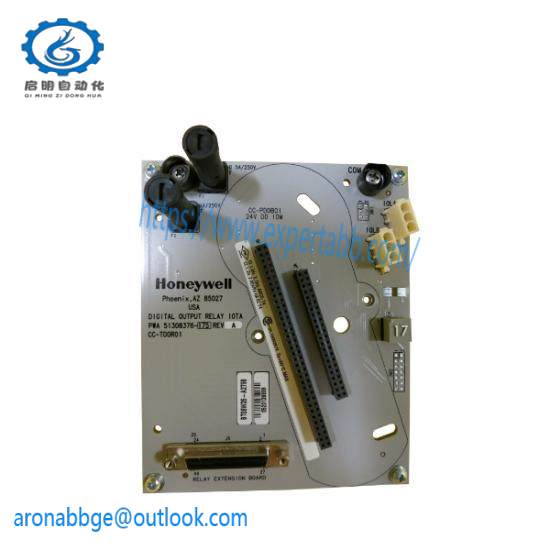

Model Number:CC-TDOR01 51308376-175
Exhibitor:Honeywell
Number of Relays:1
Channel Capacity:5 A @ 24 Vdc
Operating Voltage Range:24 Vdc
Operating Current:24 mA
Relay Life Expectancy:10^7 cycles
Contact Rating:SPDT (Single Pole Double Throw)
Dimensions (W x H x D):22 mm x 76 mm x 50 mm
Weight:0.02 kg
Operating Temperature Range:-40°C to +85°C
Storage Temperature Range:-40°C to +85°C
IP Rating:IP20
Mounting:Panel mount
Introducing the Honeywell CC-TDOR01 Digital Output Relay Module, a versatile and robust solution for industrial control applications. This module is engineered to withstand demanding environments, offering exceptional reliability and performance. Its compact design allows for easy integration into existing systems without compromising functionality.
Featuring a wide operating voltage range from 24V DC, this module is compatible with a variety of industrial power sources, ensuring compatibility across different systems. With a current rating of 10A, it is capable of handling significant loads, making it suitable for a broad spectrum of control tasks.
The CC-TDOR01 boasts a contact rating of 1 Form A (NO) and 1 Form C (NC), providing two independent switching paths for enhanced flexibility. Its high relay life cycle, over 100,000 operations, ensures long-lasting performance even under frequent use.
Designed with an input range of 0 to 30V DC, the module can accommodate a wide array of sensor outputs, making it a flexible choice for diverse control scenarios. The operating temperature range of -40°C to +70°C guarantees reliable operation in both extreme cold and hot conditions, ideal for outdoor or process control applications.
Constructed from dielectric plastic, the enclosure ensures electrical insulation and protection against environmental factors. The dimensions of 105mm x 105mm x 45mm make it suitable for compact installations, reducing the space footprint on your workbench or system rack.
