EDS1791-N-016-000 – Industrial Module

Operating Range:0-100 bar

Accuracy:+/- 1% FS

Repeatability:0.1% FS

Response Time:≤ 0.5 s

Switch Points:Adjustable between 0.5% to 99.5% FS

Environmental Temperature:-25°C to +70°C

Power Consumption:≤ 3 W

Relay Contacts:1 Form A, 1 Form B

Operating Voltage:12 VDC to 30 VDC

Operating Current:≤ 50 mA

Reliability Rating:MTBF > 50,000 hours

Material:Stainless Steel 316L

IP Rating:IP65

Mounting:Panel Mount, IP65 Rated

Dimensions:25 x 125 mm

Weight:Approx. 50 g

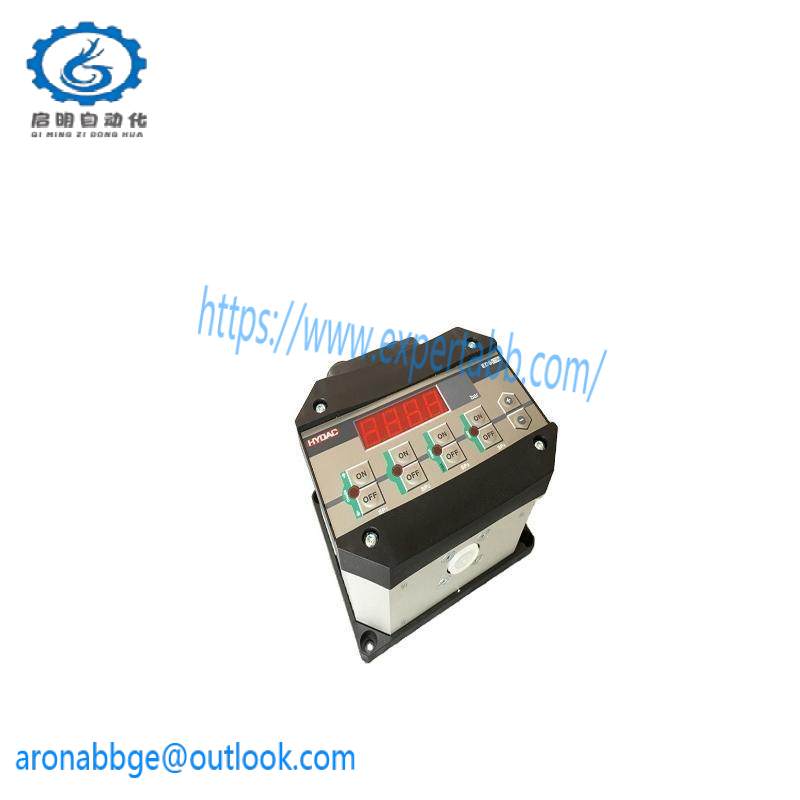

    The HYDAC EDS1791-N-016-000 Electronic Pressure Switch offers unparalleled accuracy and reliability in monitoring and controlling pressure within industrial environments. Its compact design, combined with a robust stainless steel body, ensures durability and longevity in harsh conditions.

    Programmable setpoints allow for customized threshold levels, enabling precise control over processes that require sensitive pressure management. This feature is particularly advantageous in applications where slight variations in pressure could impact operational efficiency.

    Equipped with a silicone diaphragm, the switch is capable of withstanding extreme temperature fluctuations without compromising performance. The IP65/IP67 protection class further enhances its suitability for outdoor or dusty industrial settings, ensuring it remains functional even in challenging environments.

    The relay output provides a stable electrical signal for easy integration into existing control systems. This feature simplifies installation and maintenance, reducing downtime and enhancing operational efficiency.

    Designed for seamless integration with various industrial control systems, the HYDAC EDS1791-N-016-000 is compatible with a wide range of protocols and standards. This compatibility ensures it can be easily incorporated into existing infrastructure, facilitating a smooth transition and minimizing disruption to ongoing operations.
