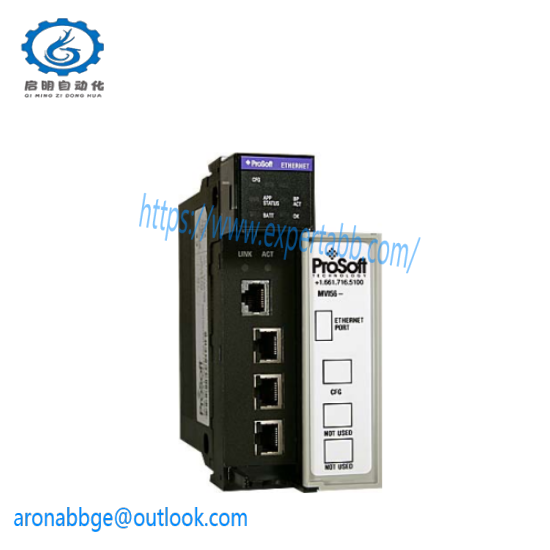

Prosoft MVI56-MNET: Advanced Modbus TCP/IP Interface Module for Industrial Automation

Operating System Compatibility:Windows, Linux, and Unix

Network Protocol:Modbus TCP/IP

Data Transfer Rate:Up to 10 Mbps

Power Supply:DC 5V or 9-36V

Dimensions (WxDxH):77 x 77 x 25mm

Connection Ports:1x RJ45 Ethernet

Temperature Range:-40°C to +85°C

Humidity Range:0% to 95% RH (non-condensing)

    The Prosoft MVI56-MNET Modbus TCP/IP Interface Module is designed to streamline industrial communication processes, ensuring efficient data flow between various control systems and devices. This module supports a wide range of communication protocols, including Modbus TCP/IP, facilitating seamless integration with existing systems.

    With backward compatibility, users can upgrade older MVI56-MNET modules without altering existing ladder logic programs or module configurations, saving time and resources. The enhanced features offer greater flexibility, enabling customization to meet specific application requirements.

    For environments with harsh conditions, the MVI56E-MNETXT variant conforms to EN60079-0 and EN60079-15 standards, ensuring reliable operation in caustic and extreme temperature settings.

    Integrated with RSLogix 5000, the module communicates through a Sample Add-On Instruction (AOI) or ladder logic file, simplifying setup and minimizing the need for additional programming or configuration software.

    Each port of the MVI56E-MNET module is individually configurable, allowing users to tailor communication parameters to specific device networks. The MVI56-HART Master Communication Module further enhances functionality by enabling easy communication with HART slave devices, supporting up to 15 devices per channel.
