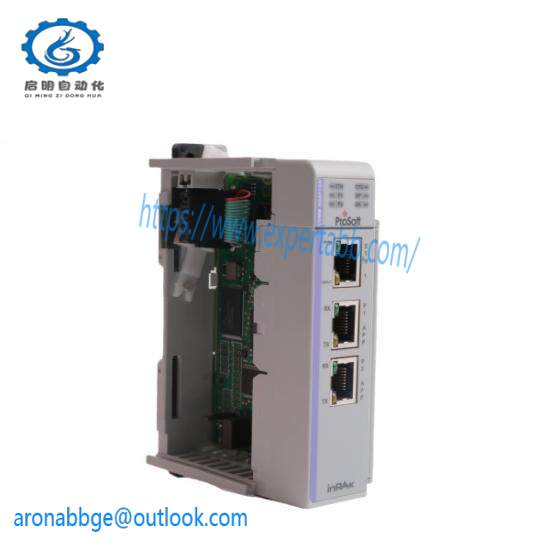

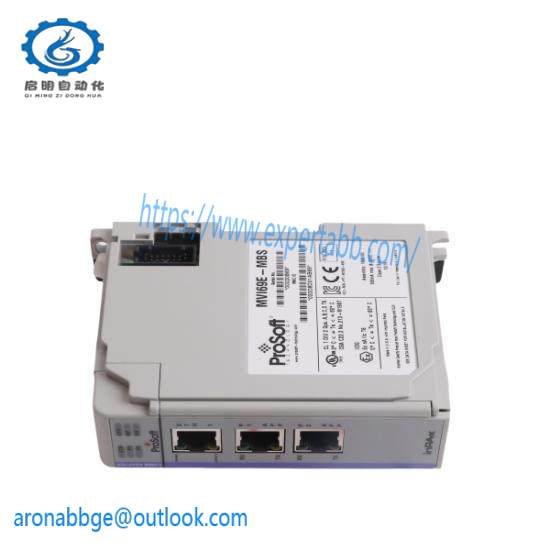

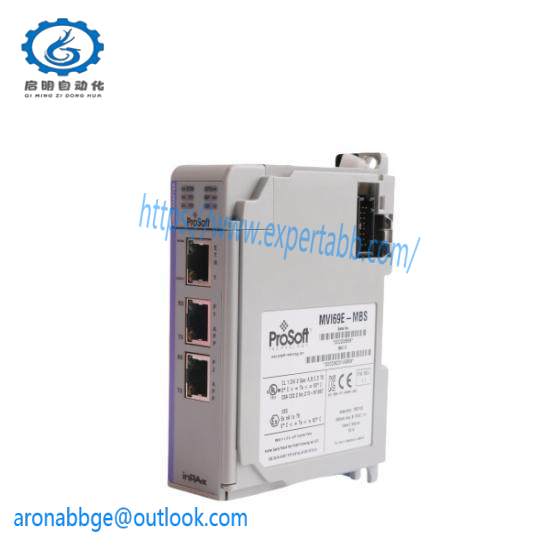

Prosoft Technology MVI69E-MBS Modbus Serial Enhanced Communication Module – Industrial Control Network Solution

I/O Size:120/240 – 16 bit integers

Communication Parameters:{“Baud Rate”:”110 to 115K baud”,”Stop Bits”:”1 or 2″,”Data Size”:”7 or 8 bits”,”Parity”:”None, Even, Odd”,”RTS Timing Delays”:”0 to 65535 milliseconds”,”Floating Point Data Movement”:”Supported, configurable for Enron, Daniel®, and other implementations”}

Product Type:ASCII

Compatibility:CompactLogix processors with 1769 I/O bus capability version 16 and greater

Add-on Instructions:Creates UDTs for logical definitions of I/O, status, and control data

Add-on Profile Support:RSLogix 5000, improves integration in the CompactLogix system

Diagnostic Data Availability:Available in RSLogix 5000 controller tags, enabling decisions based on node health

    Engineered with advanced licensed backplane technology, the Prosoft MVI69E-MBS module ensures reliable data transfer at high speeds between your CompactLogix and MicroLogix processors, making it an indispensable part of your automation ecosystem.

    This module seamlessly integrates as a Generic 1769 module, complete with a sample ladder logic guide to facilitate quick setup and operation.

    Gain real-time insights into your module’s status and data directly through RSLogix 5000 controller tags and User Defined Types (UDTs), enhancing monitoring and control capabilities.

    The Modbus Master/Slave protocol interface allows you to emulate either role across multiple individually-configurable applications, providing unparalleled flexibility in network configurations.

    Optimized for seamless compatibility with CompactLogix processors, the MVI69E-MBS module supports extended functionalities like add-on instructions and profiles, streamlining integration processes and enhancing operational efficiency.
