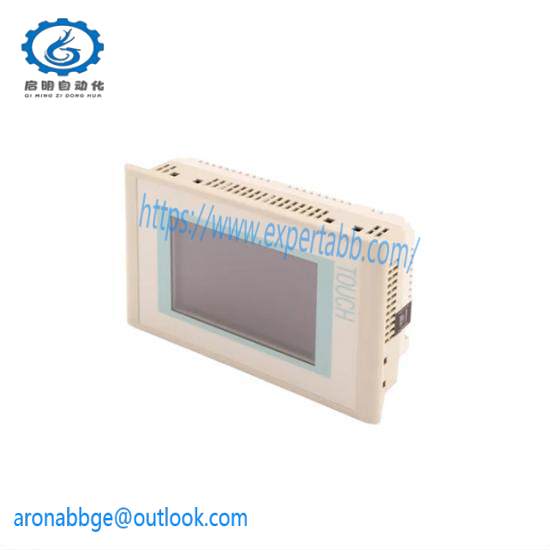

SIEMENS 6AV6 642-0BA01-0AX1 Touch Panel: Industrial Grade Human Machine Interface

Operating System:Siemens TIA Portal V15 or later

Screen Size:7-inch

Display Resolution:800×480 pixels

Touch Technology:Projected Capacitive

Connectivity:Profinet/Industrial Ethernet

Processing Power:Up to 500 MHz

Memory:2 MB Configuration Memory, 8 MB Flash Memory

Input Output:8 DI, 8 DO, 4 AI, 4 AO

Operating Temperature:-10°C to +55°C

Humidity Range:5% to 95% non-condensing

Power Supply:12 V DC, 12 W

    The Siemens 6AV6 642-0BA01-0AX1 Touch Panel features a responsive and durable 7-inch LCD display with a projected capacitive touch screen, ensuring smooth and accurate user interaction. Its compact design makes it suitable for integration into various industrial machines without compromising on functionality.

    Equipped with Siemens TIA Portal V15 or later, this HMI solution supports advanced programming and configuration, enabling users to customize their interfaces according to specific needs. It supports Profinet/Industrial Ethernet connectivity, facilitating seamless communication with other industrial devices.

    With a processing power up to 500 MHz, this panel ensures quick response times and smooth operation under demanding conditions. The built-in memory provides ample space for storing programs, data, and configurations, while the power supply is designed to operate efficiently within a wide range of voltages.

    Designed for robust industrial environments, the 6AV6 642-0BA01-0AX1 Touch Panel withstands temperatures from -10°C to +55°C and maintains high performance even in high humidity conditions. Its compact size and robust construction make it ideal for space-constrained applications.

    For enhanced usability, the panel includes eight digital inputs (DI), eight digital outputs (DO), four analog inputs (AI), and four analog outputs (AO). These features allow for precise control and monitoring of processes, making it a versatile tool in various industrial settings.
