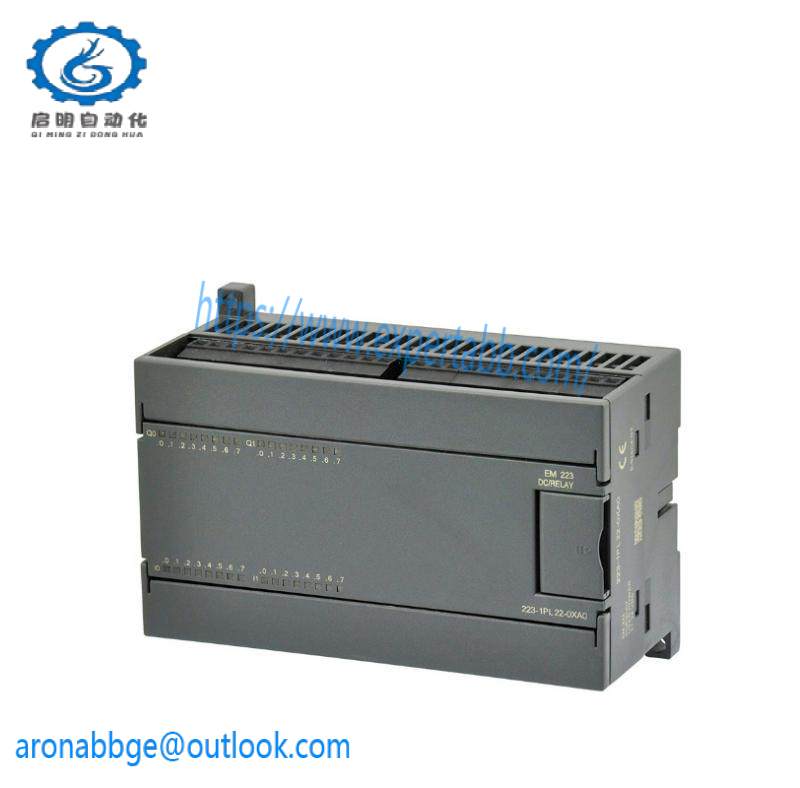

SIEMENS 6ES7 223-1PL22-0XA0 Digital IO Relay Module

Type:Digital IO Relay

Model Number:6ES7 223-1PL22-0XA0

Input Channels:16

Output Channels:16

Relay Configuration:Relay

Voltage Rating:24V DC

Current Rating:0.5A/channel

Connection Type:Source

Switching Type:PNP

Operating Frequency:0.1~600Hz

Dimensions:Width: 82mm, Height: 105mm, Depth: 115mm

Weight:0.3kg

Environment Compatibility:IP20 rated, suitable for non-condensing environments

Connectivity:Built-in PLC function, fieldbus modules (DeviceNet, Profibus, LonWorks, CANopen)

Protection Features:EMI filter, RFI switch for mains, complete protection against short-circuits, wire breaks, and supply voltage fluctuations

    Integrating advanced technology with reliability, the SIEMENS 6ES7 223-1PL22-0XA0 Digital IO Relay Module is designed for seamless integration into complex industrial automation systems. This robust module ensures stable performance across a wide range of applications, from manufacturing lines to energy management systems.

    Featuring 16 digital input channels (DI) and 16 digital output channels (DO) configured in relay form, this module offers unparalleled precision and control. Its high current rating of 0.5A per channel supports a variety of electrical loads without compromising on performance.

    With an operating frequency range of 0.1 to 600 Hz, the module is versatile enough to meet the demands of fast-paced industrial processes. The built-in PLC function simplifies programming and configuration, allowing for efficient system integration and maintenance.

    The inclusion of fieldbus modules such as DeviceNet, Profibus, LonWorks, and CANopen expands its connectivity options, ensuring compatibility with a broad spectrum of existing industrial networks. The integrated EMI filter and RFI switch for mains provide enhanced protection against electromagnetic interference and power line disturbances.

    Engineered for durability and safety, this module boasts a compact yet rugged design with IP20 rating, making it suitable for environments with moderate dust and splash resistance. It comes equipped with comprehensive protection features to safeguard against common issues like short-circuits, wire breaks, and voltage fluctuations, ensuring uninterrupted operation.
