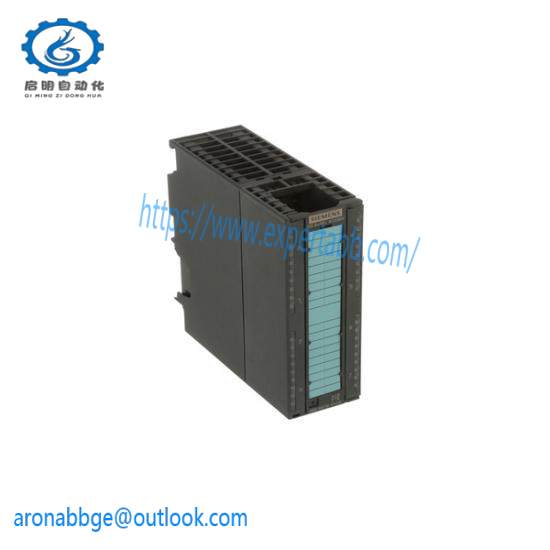

SIEMENS 6ES7322-1HF10-0AA0 – High-Performance Digital Output Module

Type:Digital Output

Model Number:6ES7322-1HF10-0AA0

Brand:SIEMENS

Channels:8

Operating Voltage:DC 24V

Max Current per Channel:4A

Optical Isolation:Yes

EMI Filter:Integrated

Connectivity:40-pin connector

Operating Temperature Range:-25°C to +60°C

Power Consumption:0.339 Watts

Dimensions:14.90 x 15.30 x 4.30 mm

Weight:0.339 kg

Certifications:[“CE”,”UL”,”CCC”]

    Engineered for seamless integration into SIMATIC S7-300 systems, the SIEMENS 6ES7322-1HF10-0AA0 Digital Output Module boasts an enhanced performance with its optical isolation feature, ensuring reliable signal transmission even under harsh industrial conditions.

    Each of the eight channels can handle a maximum current of 4A at 24V DC, making it suitable for controlling high-power actuators and relays. The integrated EMI filter mitigates electrical interference, ensuring stable operation.

    This digital output module is equipped with a 40-pin DC connector for easy installation and compatibility with various control systems. Its compact size and lightweight design facilitate quick and efficient installation.

    Operating within a temperature range of -25°C to +60°C, the module is designed to withstand the extreme conditions often encountered in industrial environments. With its CE, UL, and CCC certifications, it adheres to stringent safety standards for global deployment.

    For ease of use, the module offers single-channel diagnostics, enabling users to quickly identify and troubleshoot issues. Additionally, front connectors (screw terminals or push-in) are available for ordering separately, providing flexibility in connection options.
