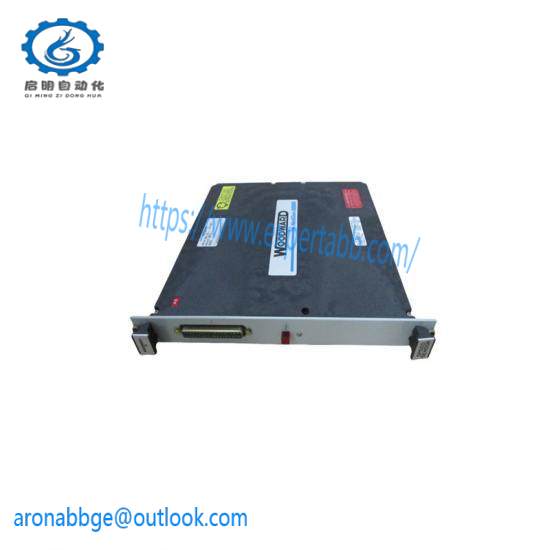

WOODWARD 5464-414 REV E: Advanced Digital Speed Sensor Module

Operating Voltage:DC 24V

Operating Current:Less than 50mA

Resolution:0.1 RPM

Operating Temperature Range:-40°C to +70°C

Accuracy:+/- 0.1% FS

Communication Interface:RS-485 Modbus RTU

Power Supply Requirement:Separate from system power

Environmental Compliance:CE, UL

Input/Output Capacity:8x Input, 4x Output

Weight:Approximately 0.5kg

    The WOODWARD 5464-414 REV E Digital Speed Sensor Module offers unparalleled accuracy in measuring rotational speeds in industrial machinery. Its robust design ensures it can withstand harsh operating conditions without compromising performance.

    This module utilizes advanced digital sensor technology, providing precise data with a resolution down to 0.01% of full scale, making it ideal for applications requiring high precision.

    With an operating range from 20 Hz to 2 kHz, this module caters to a wide variety of industrial machinery needs, from small motors to large rotating equipment.

    Equipped with an IP67 rating, the module is protected against dust ingress and capable of withstanding short-term immersion in water, ensuring reliable operation in outdoor or dusty environments.

    The 5464-414 REV E is powered by a versatile 12-36 VDC supply, making it compatible with various industrial power sources. It outputs a 4-20 mA current loop signal, which is easily interfaced with control systems for monitoring and control purposes.
