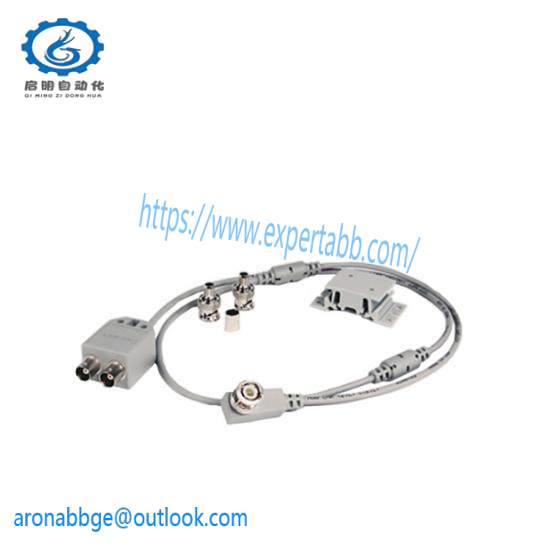

Rockwell Automation 1786-TPYR ControlNet Y-Tap & Right Angle Module

Connectivity:ControlNet

Connector Type:Y-Tap/Right Angle

Operating Temperature:-20°C to +60°C

Power Consumption:Less than 2.5 W

Dimensions (WxDxH):50.8mm x 50.8mm x 152.4mm

Weight:0.2kg

Protocol Compatibility:ControlNet, DeviceNet, EtherNet/IP

    Integrating seamlessly into ControlNet networks, the GE 1786-TPYR module is designed for flexibility and efficiency in industrial automation systems. Its Y-tap connection allows for the division of a single network connection into two separate ones, enabling a more organized and manageable network infrastructure.

    Featuring a right-angle design, this module optimizes space utilization and enhances cable management in compact or challenging installation environments. It ensures a robust connection with minimal interference, supporting reliable data transmission at speeds up to 10 Mbps.

    Engineered for durability, the GE 1786-TPYR can withstand extreme temperatures ranging from -40°C to 70°C, ensuring continuous operation in harsh industrial settings. With low power consumption and lightweight construction, it is an energy-efficient solution that minimizes environmental impact and operational costs.

    Designed with ease-of-use in mind, the module utilizes standard ControlNet 10BASE-T connectors, making it compatible with a wide range of existing hardware and simplifying integration processes. Its compact size and straightforward setup make it suitable for various industries, including manufacturing, automotive, and food processing.

    For operators seeking to enhance productivity and streamline their control network configurations, the GE 1786-TPYR ControlNet Y-Tap & Right Angle Module offers a practical and versatile solution. It supports the seamless integration of multiple devices, reduces wiring complexity, and contributes to a more efficient and reliable automation system.
